6015 blower

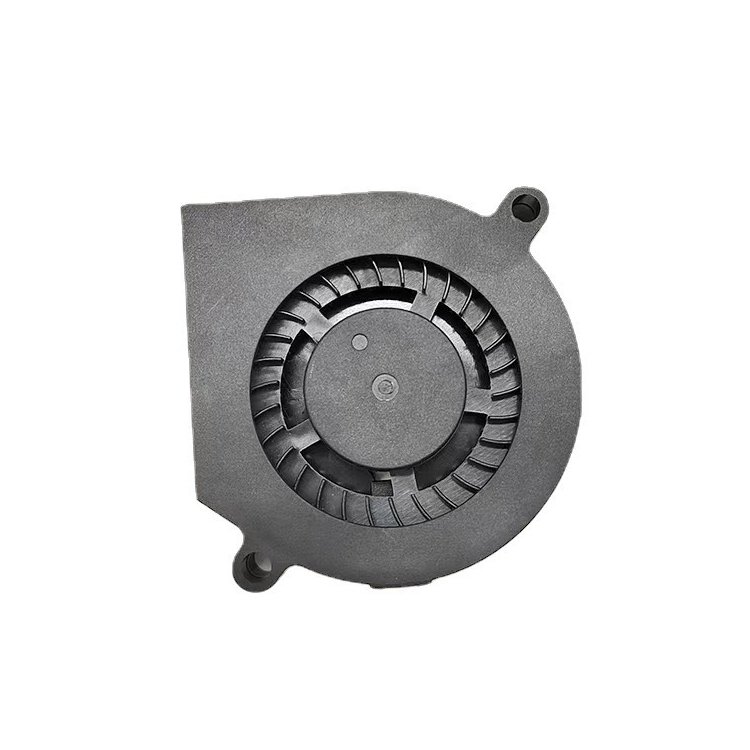

6015鼓风机-1

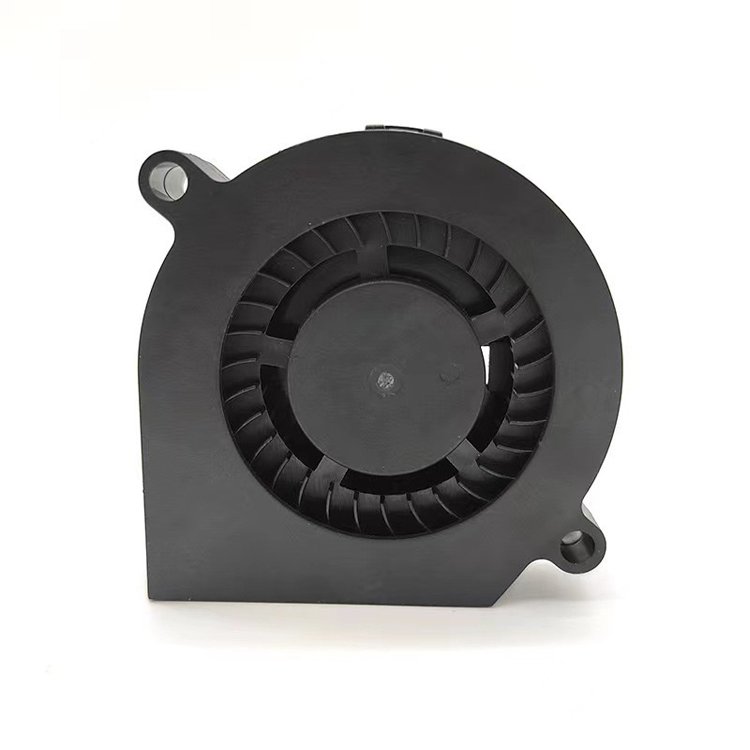

6015鼓风机-2

6015 blower

  • Size: 60x60x15mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp SpeedAir flow Static PressureNoise Level Weight
Part No.S BV ARPM CFMmmH2O dBAG
DC6015H12B√ 120.405000 4.54 16.6243.50 66
DC6015M12B√ 120.30 40003.67 9.7236.90 66
DC6015L12B√ 120.143000 2.78 5.1229.50 66
DC6015H24B√ 240.18 50004.54 16.6243.50 66
DC6015M24B√ 240.154000 3.67 9.7236.90 66
DC6015L24B√ 240.07 30002.78 5.1229.50 66
All models can be customized to meet customer needs.

60*60*15mm 6015 double ball bearing 3D printer blower fan.
