6025 blower

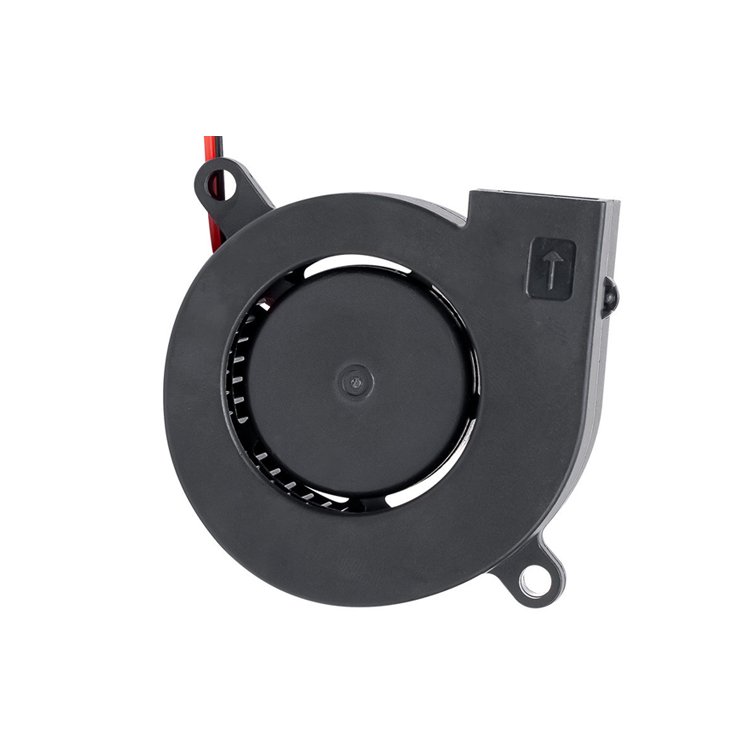

6025鼓风机-1

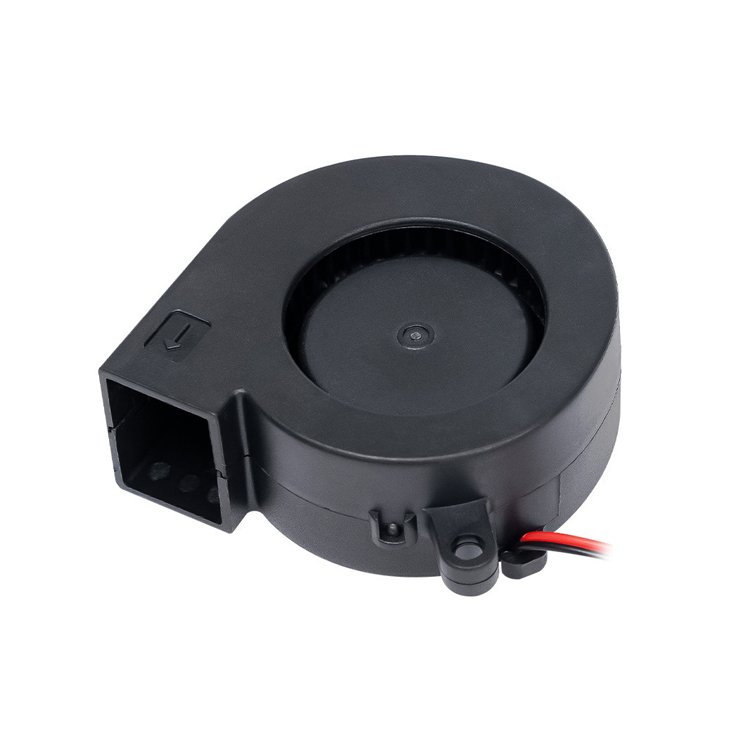

6025鼓风机-2

6025 blower

  • Size: 60x60x25mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp SpeedAir flow Static PressureNoise Level Weight
Part No.S BV ARPM CFMmmH2O dBAG
DC6025H12B√ 120.305000 9.74 25.4946.40 50
DC6025M12B√ 120.20 40007.75 14.4839.70 50
DC6025L12B√ 120.103000 5.63 7.0331.00 50
DC6025H24B√ 240.15 50009.74 25.4946.40 50
DC6025M24B√ 240.104000 7.75 14.4839.70 50
DC6025L24B√ 240.05 30005.63 7.0331.00 50
All models can be customized to meet customer needs.

60*60*25mm 6025 double ball bearing 3D printer blower fan.
