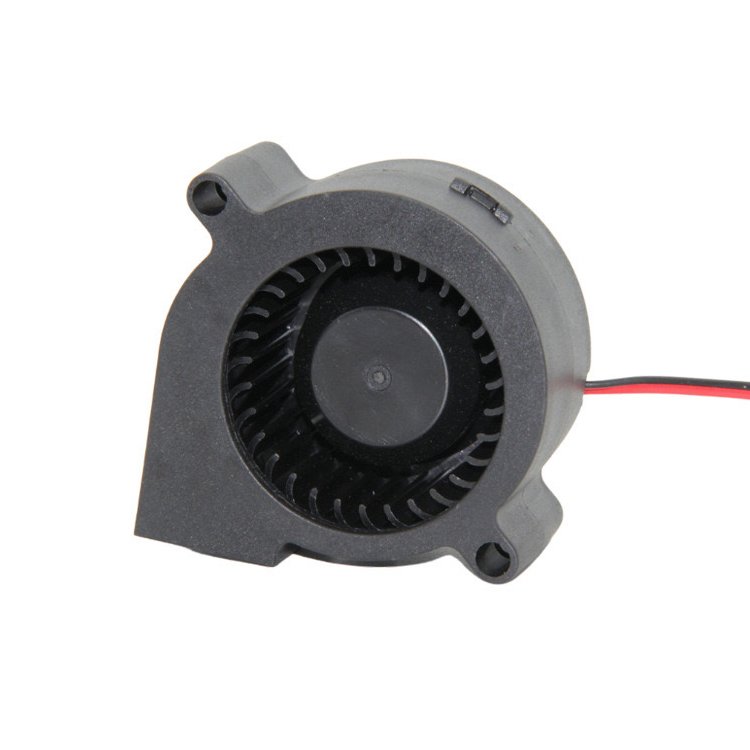

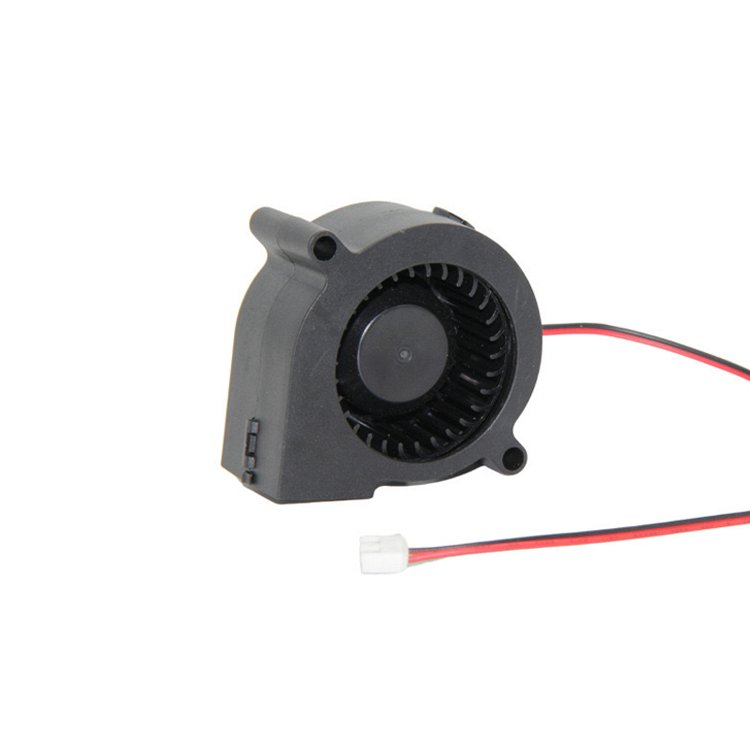

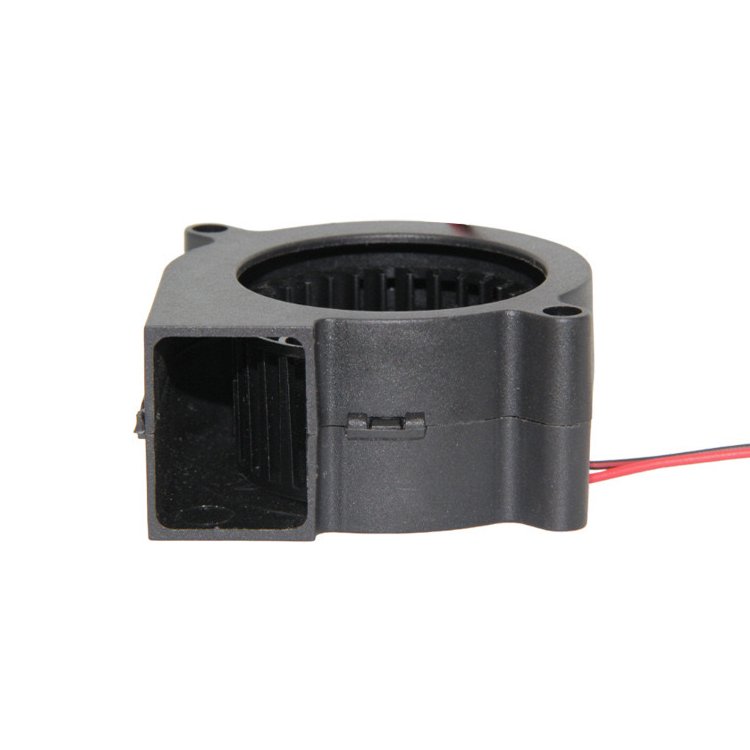

5025 blower
5025鼓风机-1
5025鼓风机-2
5025鼓风机-3

5025 blower

  • Size: 50x50x25mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp  SpeedAir flow  Static PressureNoise Level Weight
Part No.S  BV ARPM CFMmmH2O dBAG
DC5025H05B√ 50.635000 5.30 20.8046.20  34
DC5025M05B√ 50.35 40003.99  11.2440.30  34
DC5025L05B√ 50.163000 3.09 5.2234.50  34
DC5025H12B√ 120.26 50005.30  20.8046.20  34
DC5025M12B√ 120.154000 3.99 11.2440.30  34
DC5025L12B√ 120.07 30003.09  5.2234.50  34
DC5025H24B√ 240.135000 5.30 20.8046.20  34
DC5025M24B√ 240.07 40003.99  11.2440.30  34
DC5025L24B√ 240.033000 3.09 5.2234.50  34
All models can be customized to meet customer needs.

50*50*25mm 5025 double ball bearing 3D printer blower fan.
