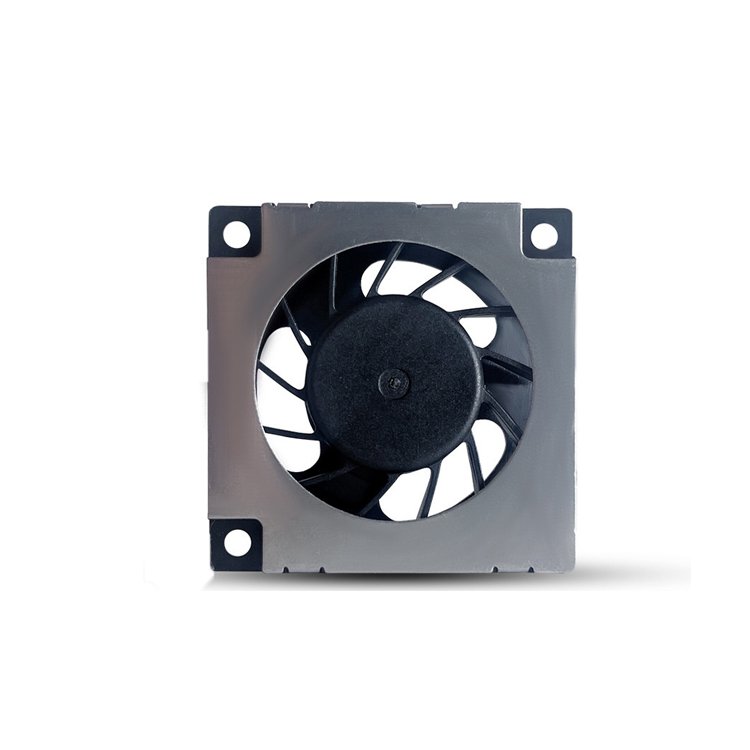

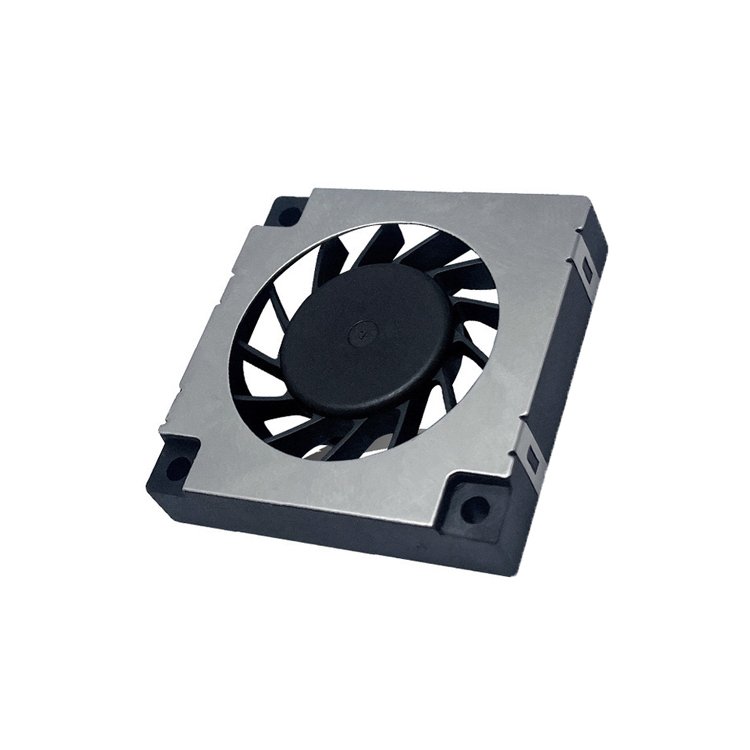

3507 blower fan
3507鼓风机-1
3507鼓风机-2

3507 blower fan

  • Size: 35x35x7mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp SpeedAir flow Static PressureNoise Level Weight
Part No.S BV ARPM CFMmmH2O dBAG
DC3507H05S√ 50.187500 1.39 9.8432.30 8.5
DC3507M05S√ 50.12 60001.11 5.9227.20 8.5
DC3507L05S√ 50.085000 0.84 4.0823.90 8.5
DC3507H12S√ 120.07 75001.39 9.8432.30 8.5
DC3507M12S√ 120.056000 1.11 5.9227.20 8.5
DC3507L12S√ 120.03 50000.84 4.0823.90 8.5
All models can be customized to meet customer needs.

35*35*7mm 3507 double ball bearing 3D printer blower fan.
