4010 blower

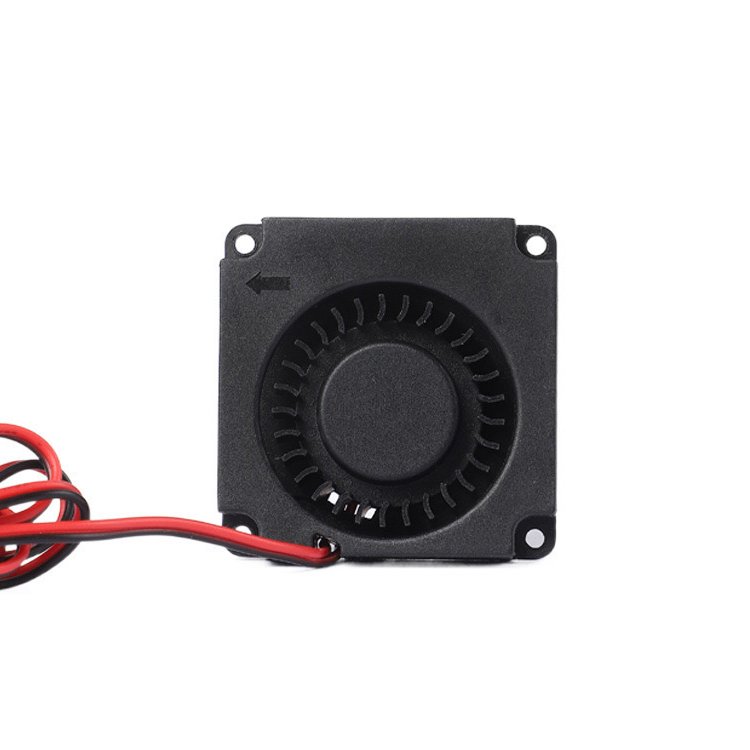

4010鼓风机-1

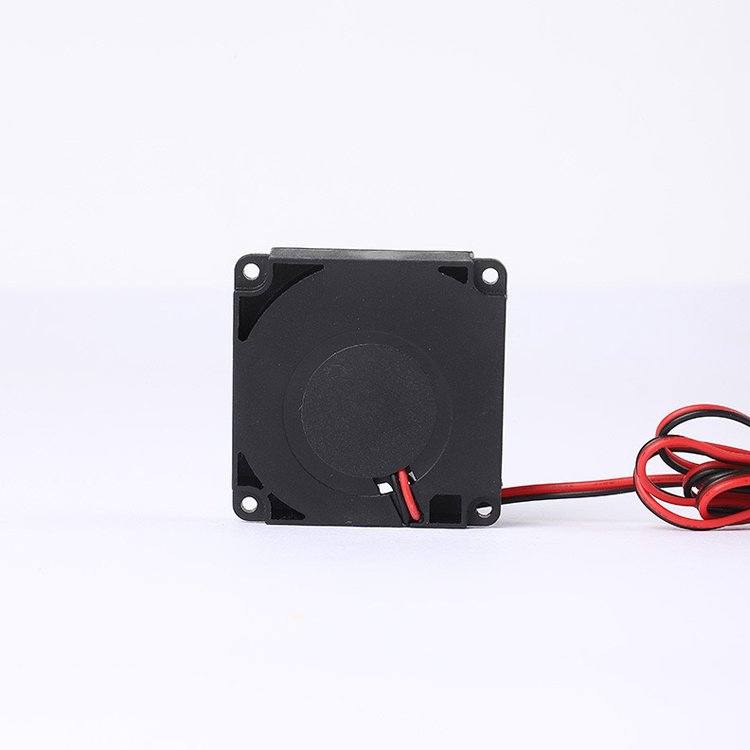

4010鼓风机-2

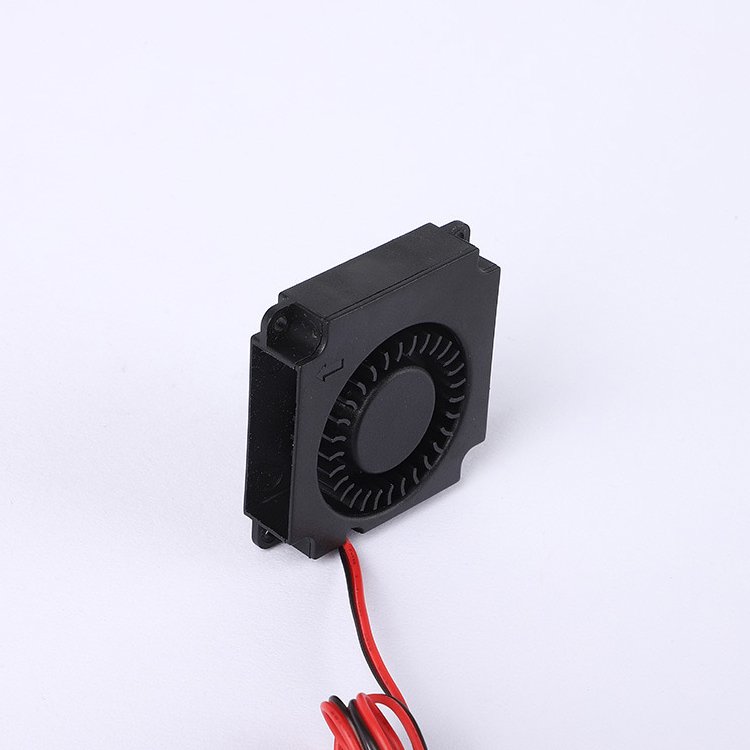

4010鼓风机-3

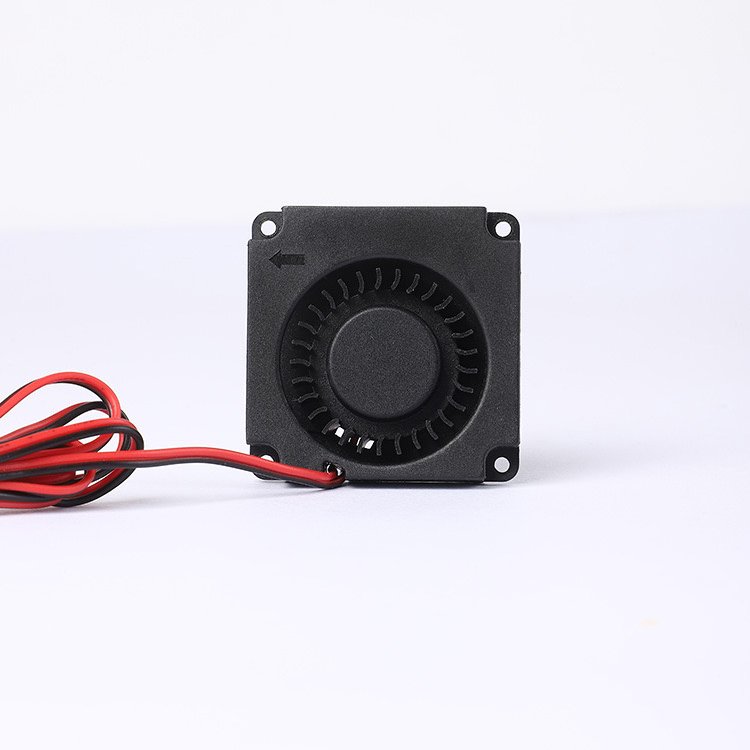

4010鼓风机-4

4010 blower

  • Size: 40x40x10mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp SpeedAir flow Static PressureNoise Level Weight
Part No.S BV ARPM CFMmmH2O dBAG
DC3510H05B√ 50.2810000 2.38 11.5840.00 8.5
DC3510M05B√ 50.22 90002.14 9.137.40 8.5
DC3510L05B√ 50.188000 1.86 6.9234.90 8.5
DC3510H12B√ 120.11 100002.38 11.5840.00 8.5
DC3510M12B√ 120.099000 2.14 9.137.40 8.5
DC3510L12B√ 120.07 80001.86 6.9234.90 8.5
All models can be customized to meet customer needs.

40*40*10mm 4010 double ball bearing 3D printer blower fan.
