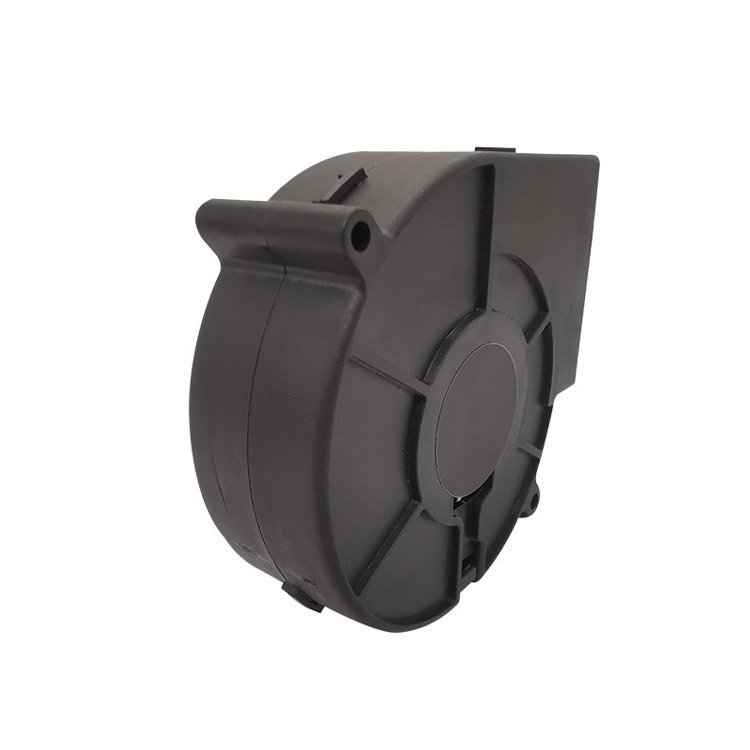

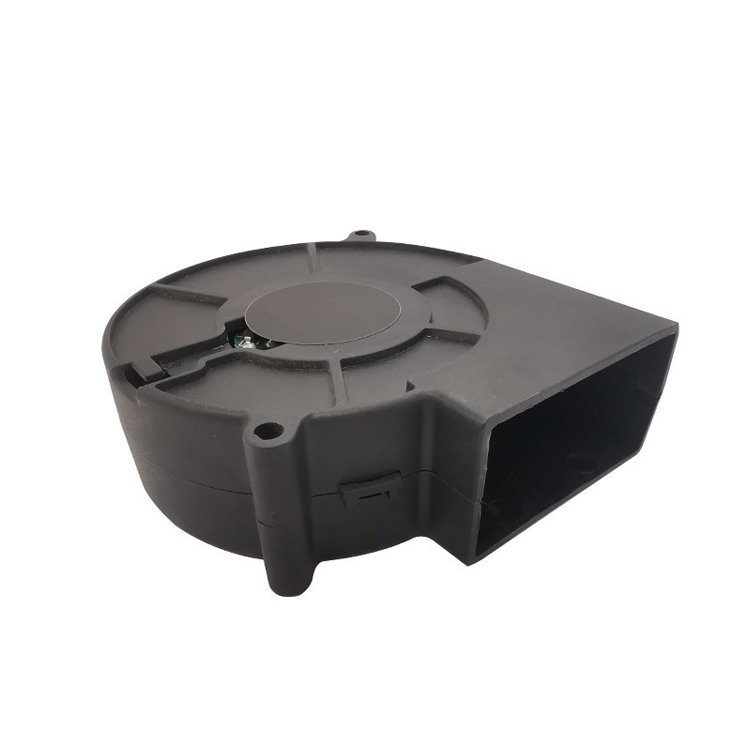

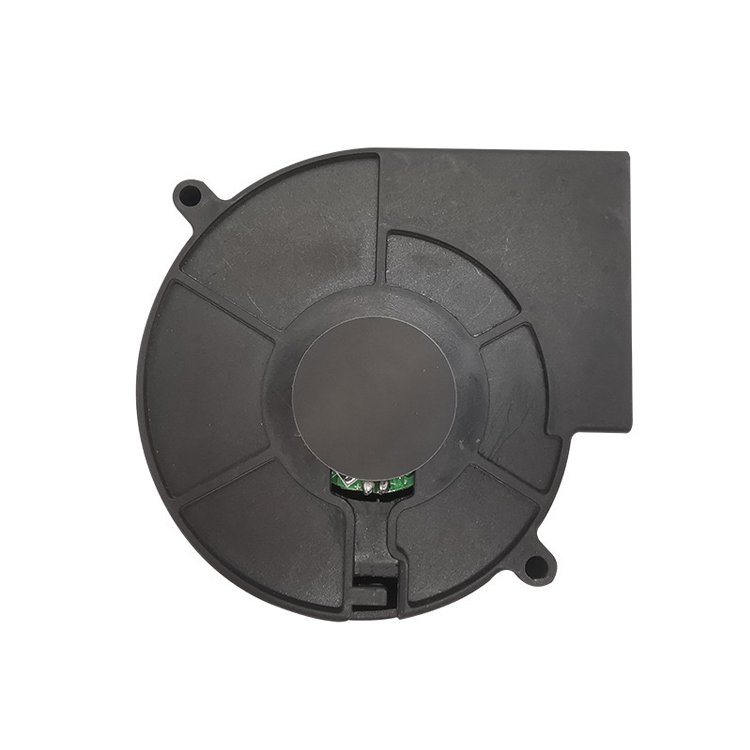

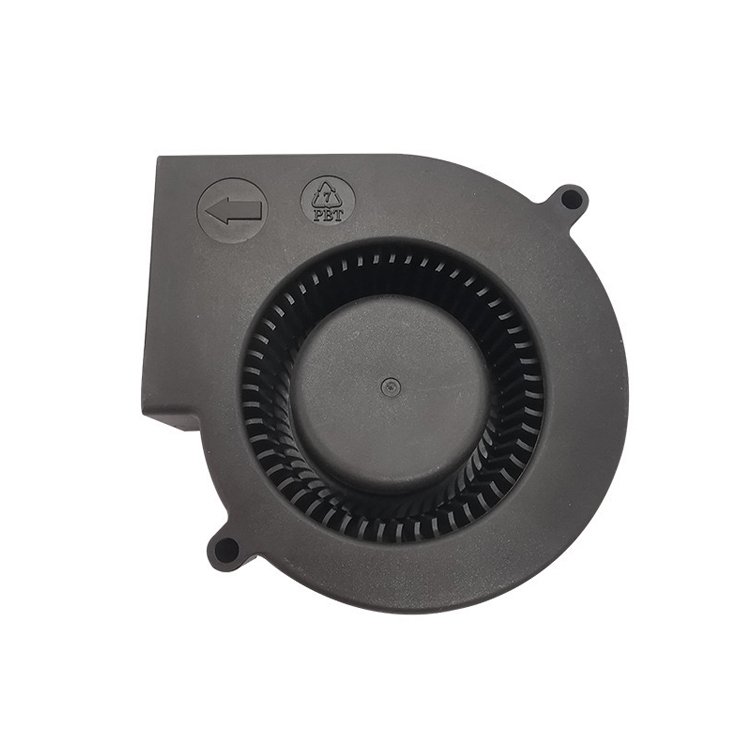

9733 blower
9733鼓风机-1
9733鼓风机-2
9733鼓风机-3
9733鼓风机-4

9733 blower

  • Size: 97x97x33mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp  SpeedAir flow  Static PressureNoise Level Weight
Part No.S  BV ARPM CFMmmH2O dBAG
DC9733H12B√ 121.005000 25.20 26.2555.30  170
DC9733M12B√ 120.38 400020.00  16.1750.90  170
DC9733L12B√ 120.363000 12.80 8.9944.80  170
DC9733H24B√ 240.50 500025.20  26.2555.30  170
DC9733M24B√ 240.344000 20.00 16.1750.90  170
DC9733L24B√ 240.18 300012.80  8.9944.80  170
DC9733H48B√ 480.255000 25.20 26.2555.30  170
DC9733M48B√ 480.17 400020.00  16.1750.90  170
DC9733L48B√ 480.093000 12.80 8.9944.80  170
All models can be customized to meet customer needs.

97*97*33mm 9733 double ball bearing 3D printer blower fan.
