7525 blower

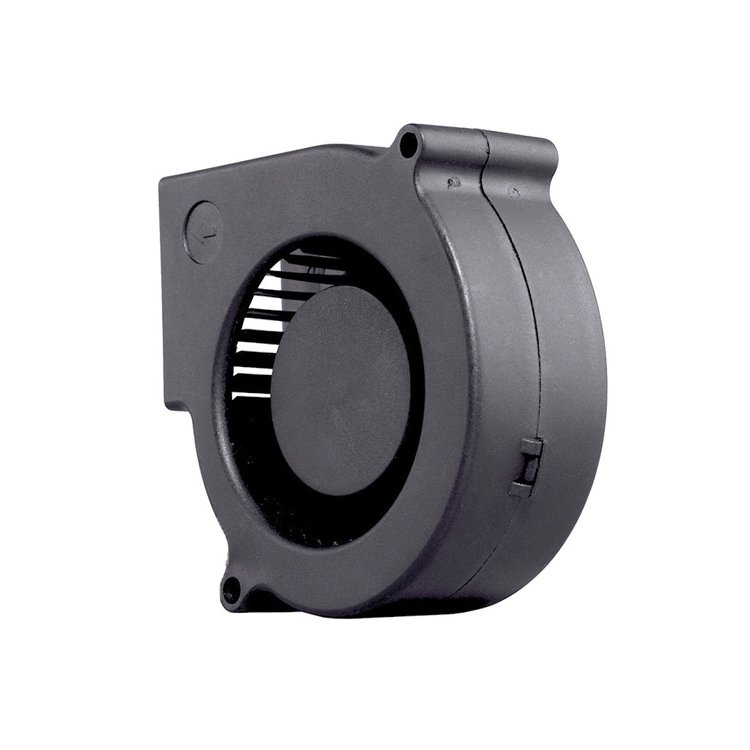

7530鼓风机-1

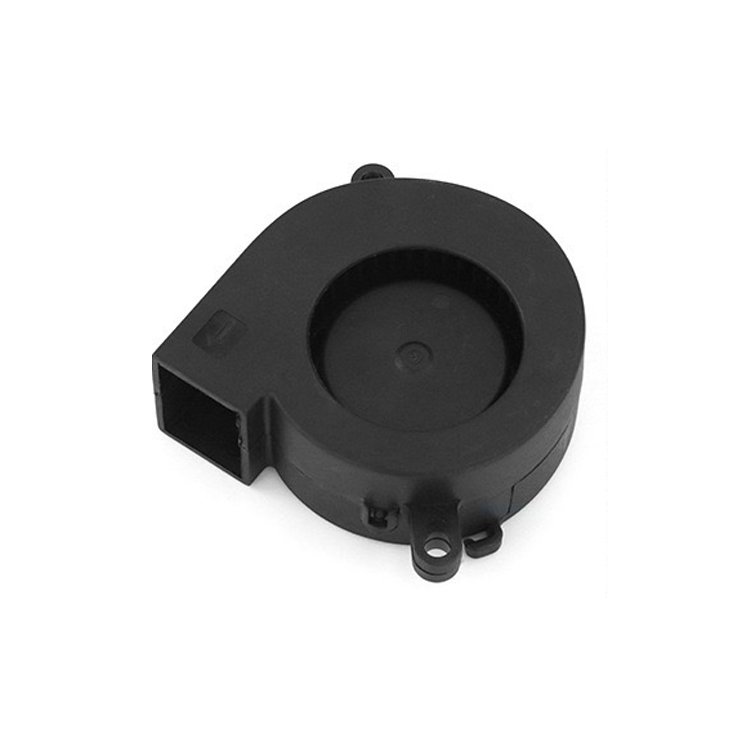

7530鼓风机-2

7525 blower

  • Size: 75x75x30mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp  SpeedAir flow  Static PressureNoise Level Weight
Part No.S  BV ARPM CFMmmH2O dBAG
DC7530H12B√ 120.604000 12.90 14.3746.80  79
DC7530M12B√ 120.34 30009.25  7.2642.70  79
DC7530L12B√ 120.162000 6.37 2.6533.20  79
DC7530H24B√ 240.30 400012.90  14.3746.80  79
DC7530M24B√ 240.173000 9.25 7.2642.70  79
DC7530L24B√ 240.08 20006.37  2.6533.20  79
DC7530H48B√ 480.154000 12.90 14.3746.80  79
DC7530M48B√ 480.08 30009.25  7.2642.70  79
DC7530L48B√ 480.042000 6.37 2.6533.20  79
All models can be customized to meet customer needs.

75*75*30mm 7530 double ball bearing 3D printer blower fan.
