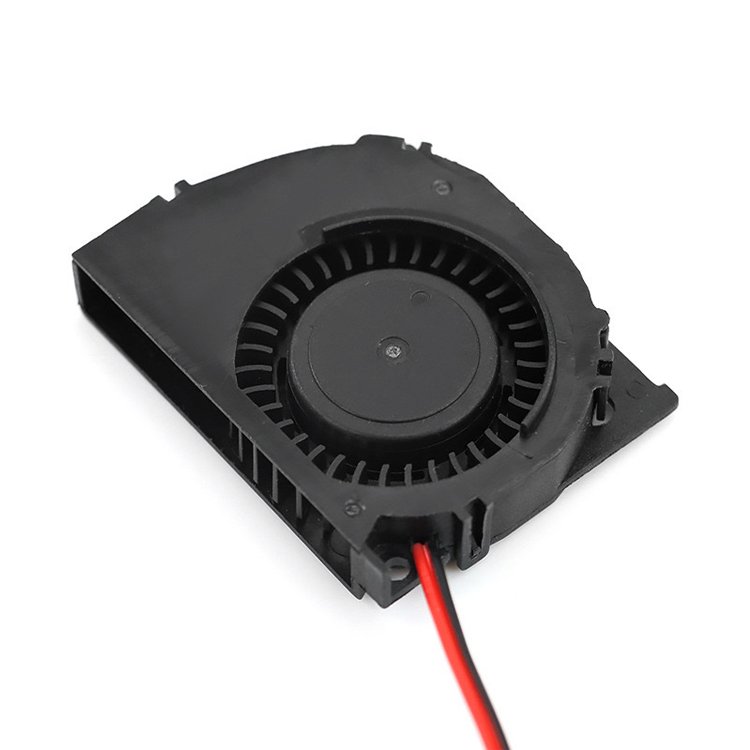

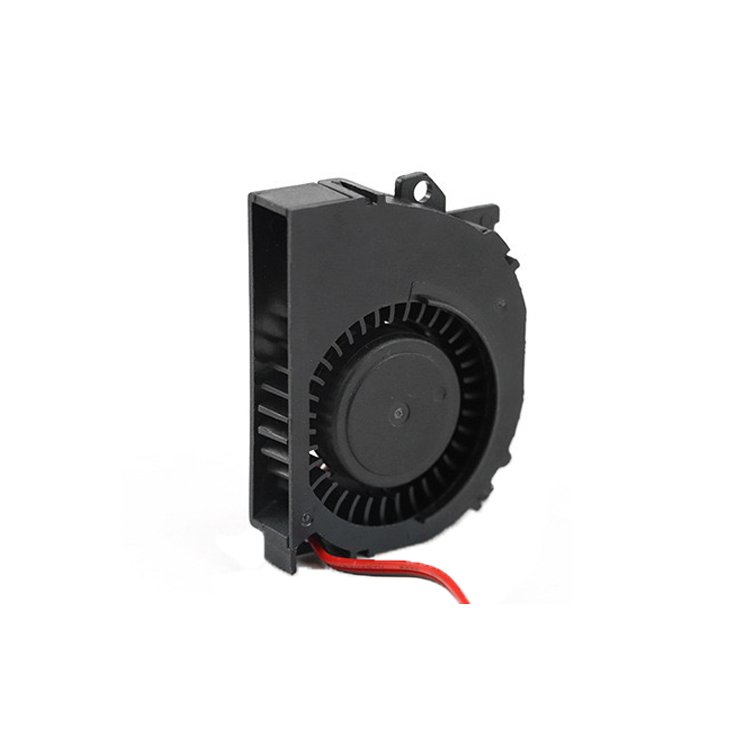

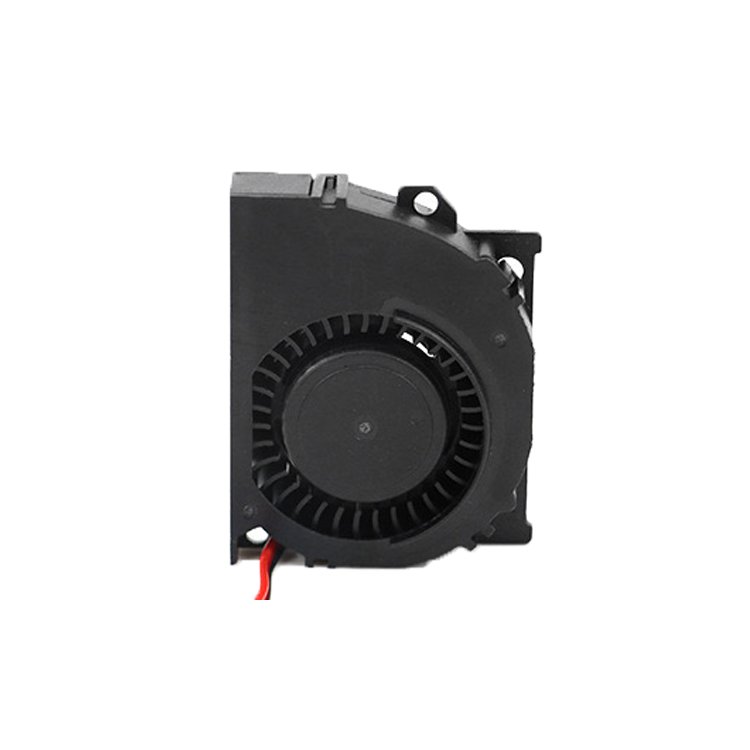

5010 blower
5010鼓风机-1
5010鼓风机-2
5010鼓风机-3

5010 blower

  • Size: 50x50x10mm
  • Frame: Thermal Plastic UL94V-0 Rating
  • Impeller: Thermal Plastic UL94V-0 Rating
  • Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black
  • Bearing: B=Double Ball Bearing, S=Sleeve Bearing
  • Life Expectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing
  • Operating Temperature/Humidity: -10℃ to 70℃
  • Storage Temperature: -40℃ to 70℃
  • Function Options: FG,RD,PWM
Contact Us
ModelBearing Type Rated VoltageCurrent Amp SpeedAir flow Static PressureNoise Level Weight
Part No.S BV ARPM CFMmmH2O dBAG
DC5010H05B√ 50.375000 2.83 8.6432.10 14
DC5010M05B√ 50.16 40002.23 4.7325.10 14
DC5010L05B√ 50.063000 1.56 2.2321.00 14
DC5010H12B√ 120.16 50002.83 8.6432.10 14
DC5010M12B√ 120.074000 2.23 4.7325.10 14
DC5010L12B√ 120.03 30001.56 2.2321.00 14
All models can be customized to meet customer needs.

50*50*10mm 4510 double ball bearing 3D printer blower fan.
