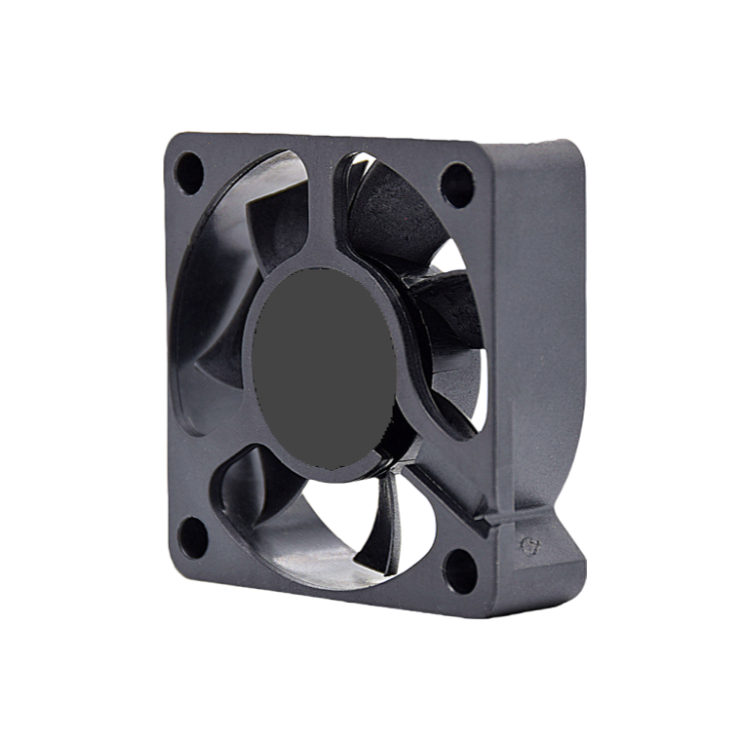

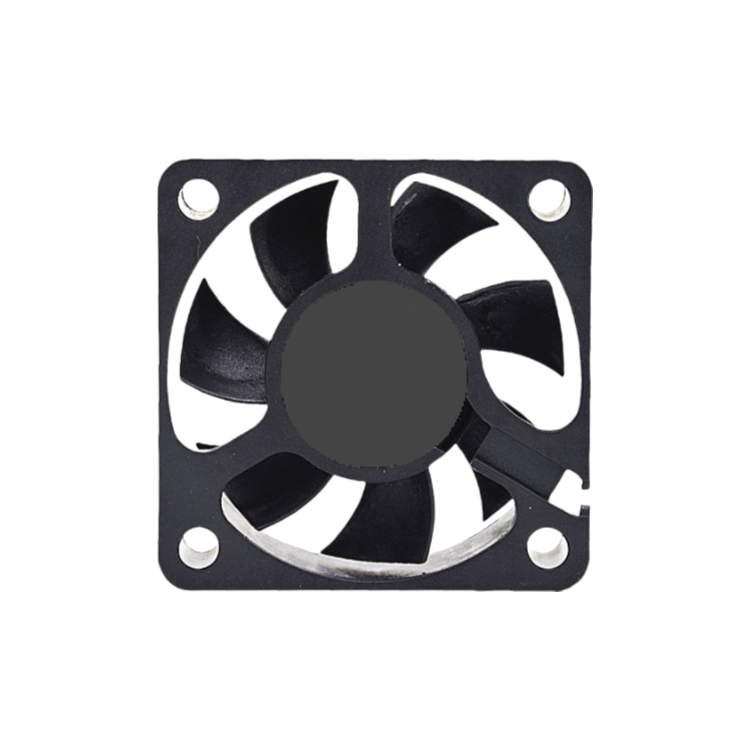

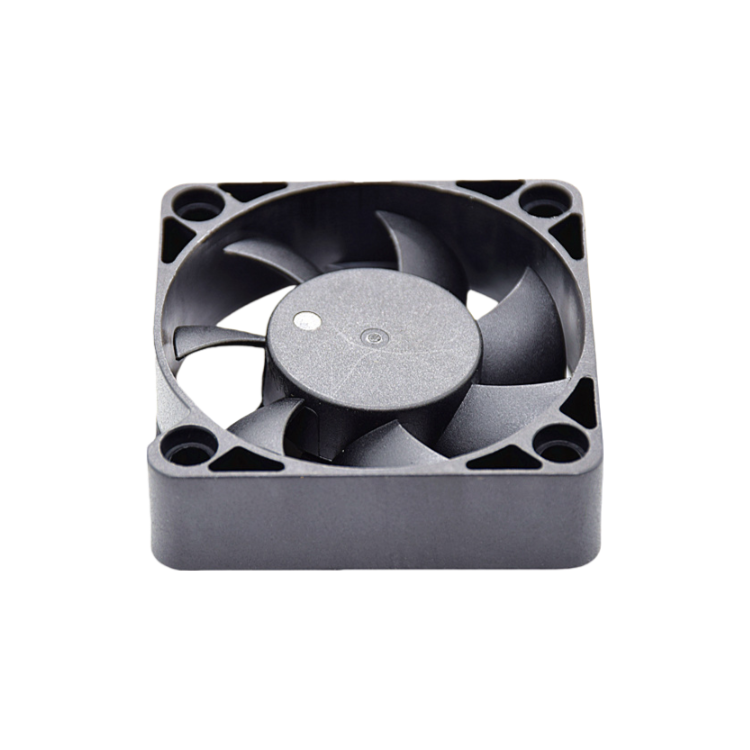

DC5015

DC5015

•Size: 50x50x15mm

•Frame: Thermal Plastic UL94V-0 Rating

•Impeller: Thermal Plastic UL94V-0 Rating

•Lead Wire: UL1571 AWG#26 or Equivalent (+) Red, (-) Black

•Bearing: B=Ball Bearing, S=Sleeve Bearing

•Life ESpectancy: 70,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing

•Operating Temperature/Humidity: -10℃ to 70℃

•Storage Temperature: -40℃ to 70℃

•Function Options: FG,RD,PWM,IP55,IP68

Model	Bearing Type		Rated Voltage	Current Amp	Speed	Air flow	Static Pressure	Noise Level	Weight
Part No.	S	B	V	A	RPM	CFM	mmH2O	dBA	G
DC5015L05X	√	√	5	0.14	4000	9.8	2.76	28.1	27
DC5015M05X	√	√	5	0.19	4500	10.8	3.37	31.2	27
DC5015H05X	√	√	5	0.24	5000	12.1	4.04	33.9	27
DC5015L12X	√	√	12	0.08	4500	10.8	3.37	31.2	27
DC5015M12X	√	√	12	0.14	5500	13.4	4.84	37.7	27
DC5015H12X	√	√	12	0.24	6500	15.8	6.68	41.2	27
DC5015HH12X	√	√	12	0.30	7500	18.3	8.68	46.1	27
DC5015L24X	√	√	24	0.04	4500	10.8	3.37	31.2	27
DC5015M24X	√	√	24	0.07	5500	13.4	4.84	37.7	27
DC5015H24X	√	√	24	0.12	6500	15.8	6.68	41.2	27
DC5015HH24X	√	√	24	0.15	7500	18.3	8.68	46.1	27
“X” means sleeve bearing or ball bearing. All models can be customized to meet customer needs.

For the brushless dc cooling fan can be use for Humidifier,Power Supply,Charger,3D Printer,Small Robot,Air Purifier Humidifier,LED Lighting…
