Leading Expert in Thermal Management and Fan Technologies
Specializing in DC Fans, AC Fans, Blower Fans, Cross-Flow Fans, and Accessories

SHENZHEN COOFAN ELECTRICAL CO.,LTD.
Tel:
+86-18579220615
Email:

info@coofanwin.com

Address:
Xingheshiji Building A, No. 3069 Caitian Road, Gangxia Community, Futian Subdistrict, Futian District, Shenzhen, China
AC12025

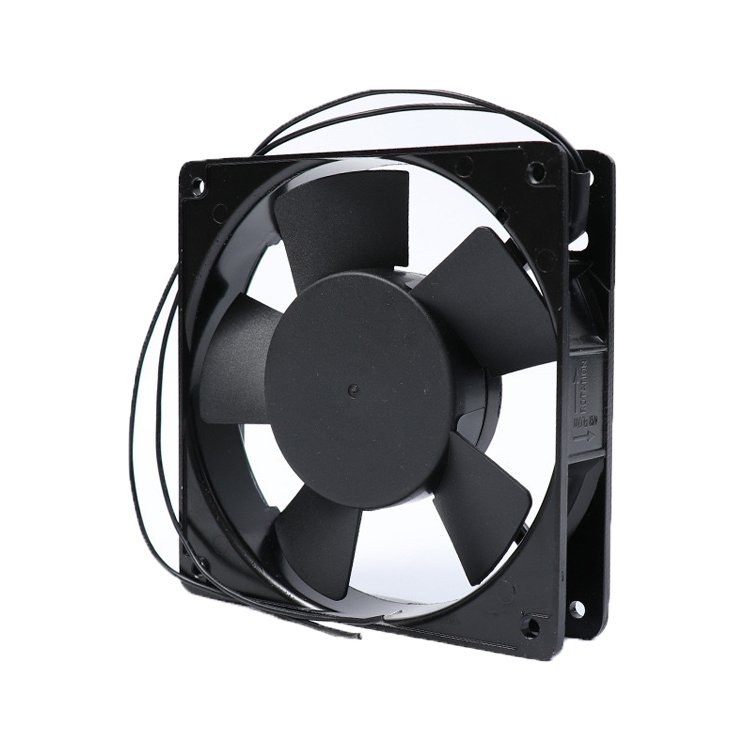

AC12025-2

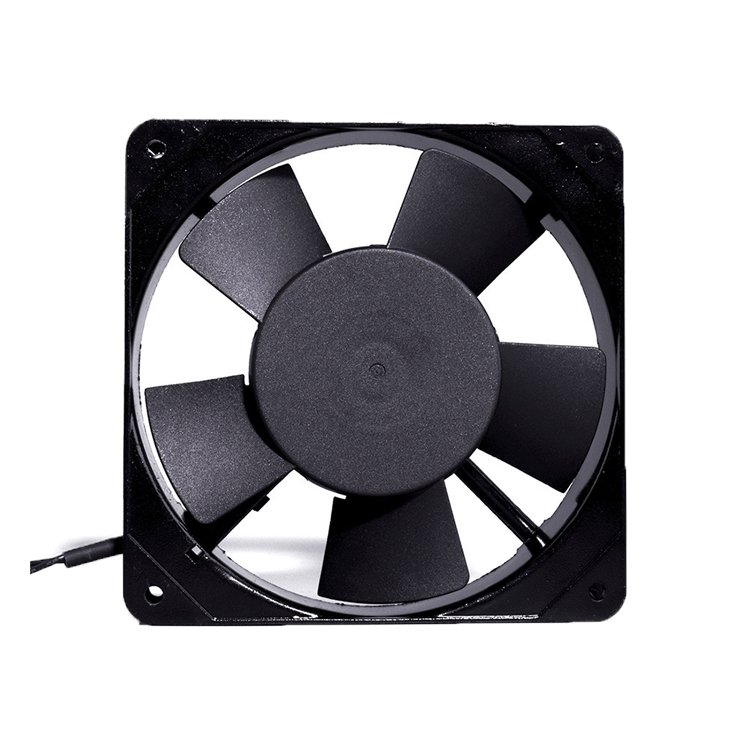

AC12025-1

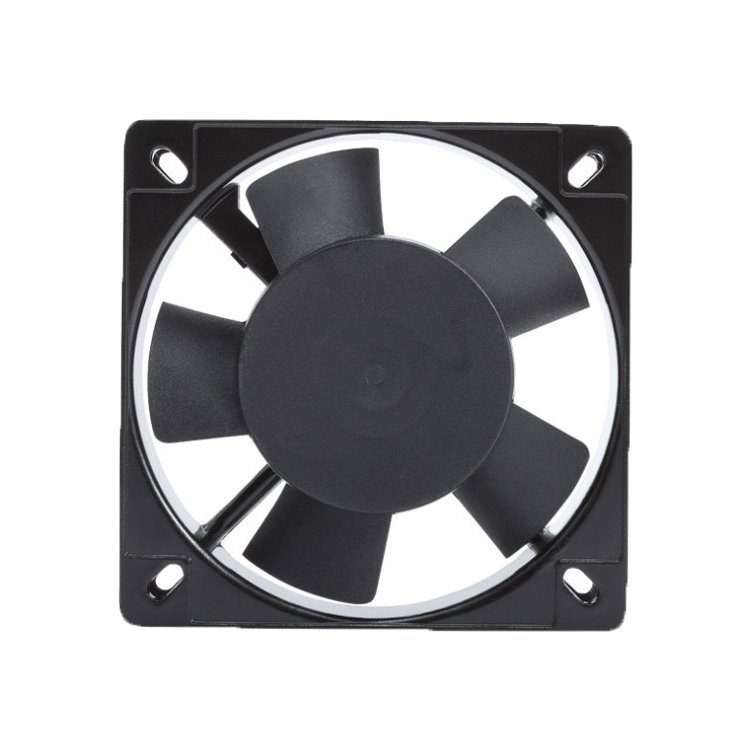

AC11025

AC12025

Contact Us

•Size: 120x120x25mm

•Frame: Aluminum Alloy

•Impeller: PBT material

•Bearing: B=Ball Bearing, S=Sleeve Bearing

•Life Expectancy: 60,000 Hours for Ball Bearing, 30,000 Hours for Sleeve Bearing

•Operating Temperature/Humidity: -10℃ to 70℃

•Storage Temperature: -40℃ to 70℃

ModelBearing Type Rated VoltageOperating voltage FrequencyCurrent Amp  PowerSpeed Air flow Static Pressure Noise LevelWeight
Part No.S  BV VHz AW RPMCFM mmH2OdBA G
AC12025H110√ 110100-12550/60 0.19/0.1719/182200/2400 66/783.56/4.0638/40 320
AC12025M110√ √110 100-12550/60 0.16/0.1416/15 2000/200058/58 3.0/3.235/35 320
AC12025L110√√ 110100-12550/60 0.13/0.1114/131800/1700 50/482.78/2.6830/29 320
AC12025H220√ 220220-240 50/600.09/0.07 19/182200/2400 66/783.56/4.06 38/40320
AC12025M220√√ 220220-24050/60 0.07/0.0516/152000/2000 58/583.0/3.235/35 320
AC12025L220√ √220 220-24050/60 0.05/0.0414/13 1800/170050/48 2.78/2.6830/29 320
All models can be customized to meet customer needs.

9225 ac fan widely used for Industrial equipment, outdoor cabinet and so on.
